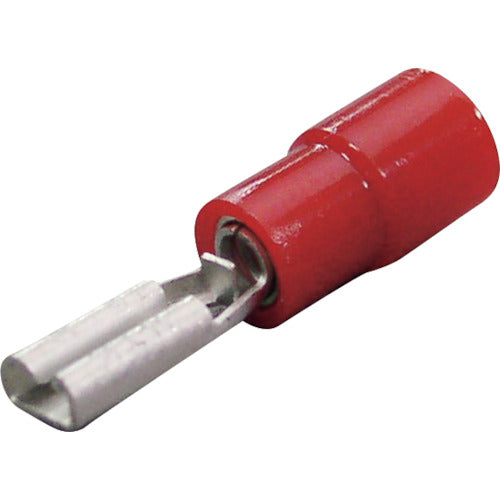

Nichifu Plug-in Connection Terminal (100 pieces) TMEDV 280509-F-RED 1 PK

Catalog number: TMEDV 280509-F-RED Features: ●The insulating coating is pre-set on the terminal tube. ●Insulation shape: The TMED type has a copper pipe between the terminal and the insulator, and the length of the copper pipe is the same as the length of the terminal tube. Applications: ●For connecting stranded wires of mild steel. Specifications: ●Wire clamping range Stranded wire (mm2): 0.75-1.25 ●Wire clamping range AWG: 18-16 ●Color: Red ●Total length (mm): 19.5 ●Inner dimension (mm): 1.8 ●Mating tab thickness (mm): 0.5 ●Compatible tab dimensions 110 (2.8) series Material/Finish: ●Terminal: Brass (electrolytic tin plated) ●Sleeve: Oxygen-free copper tube (electrolytic tin plated) ●Insulation: Polyvinyl chloride Caution: ●For copper wire only. ●Use within the wire clamping range. ●Use the applicable crimping tool specified by our company.
