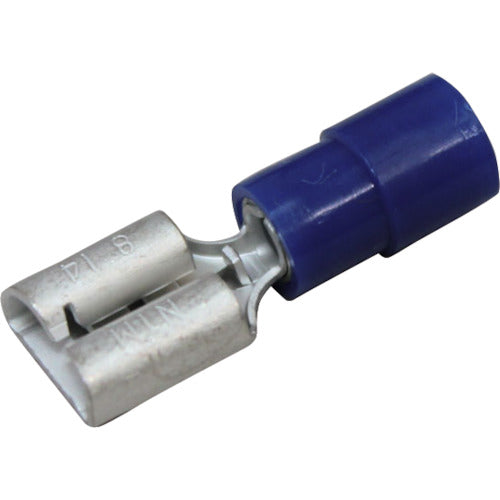

Nichifu Plug-in Connection Terminal (100 pieces) TMEDV 630820-F-BLU 1 PK

Catalog number: TMEDV 630820-F-BLU Features: ●Insulation coating is pre-set on the terminal tube. ●Insulation shape: The TMED type has a copper pipe between the terminal and the insulator, and the length of the copper pipe is the same as the length of the terminal tube. Applications: ●For connecting stranded wires of mild steel. Specifications: ●Wire clamping range Stranded wire (mm2): 2.0 ●Wire clamping range AWG: 14 ●Color: Blue ●Total length (mm): 21.0 ●Inner dimension (mm): 2.3 ●Mating tab thickness (mm): 0.8 ●Compatible tab dimensions 250 (6.3) series Material/Finish: ●Terminal: Brass (electrolytic tin plated) ●Sleeve: Oxygen-free copper tube (electrolytic tin plated) ●Insulation: Polyvinyl chloride Caution: ●For copper wire only. ●Use within the wire clamping range. ●Use the applicable crimping tool specified by our company.
