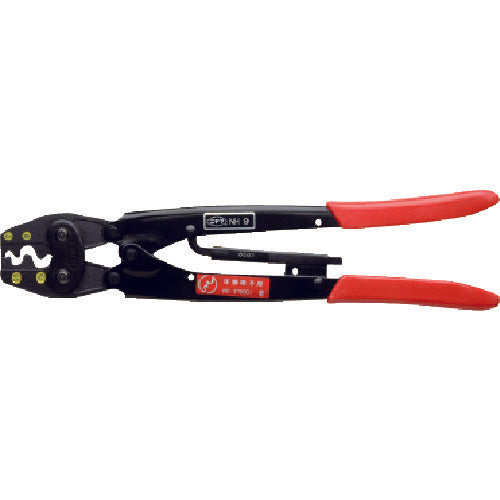

Nichifu manual tool NH 9 1 piece

Catalog number: NH 9 Features: ● Equipped with a pressure regulation device (ratchet) to prevent insufficient crimping. Uses: ● For connecting crimp terminals to electric wires. Specifications: ● Total length (mm): 297 ● Compatible terminals: 2, 3.5, 5.5, 8, 14sq ● For bare crimp terminals, bare crimp sleeves, and crimped copper tube terminals Materials/Finish: ● Die/Chrome molybdenum steel; Handle/Carbon steel for mechanical construction; Handle cover/PVC Caution: ● This tool is for use only with B-type and P-type bare crimp terminals for bare copper wires and bare crimp sleeves for copper wires, and for crimped copper tube terminals. It cannot be used for crimping E-type (ring sleeves). ● To ensure proper connection, strictly adhere to the wire conjugation range of the terminal, sleeve, and crimped copper tube terminal to be crimped. ● The handle is designed not to open until it is completely crimped by the ratchet, so do not force it open. Forcing it open can cause serious damage. Lubricate the moving parts of the tool once or twice a month. After use, wipe the entire tool with an oily cloth before storing it.
