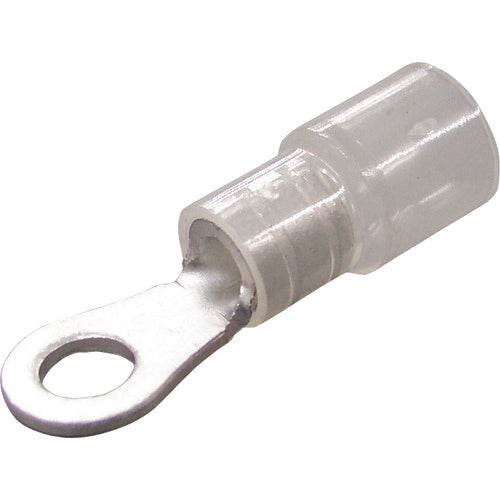

Nichifu Environmentally Friendly Insulated Round Terminal R Type (50 Pieces) TMEX 3.5-4-CLR 1 PK

Catalog number: TMEX 3.5-4-CLR Features: ●The insulating coating is pre-set in the terminal tube. ●Insulation shape: The TME type has a wire insertion guide (funnel-shaped) on the inside of the insulating coating. ●The core wire can be smoothly inserted into the tube along the guide with the coating stripped without twisting. ●Since it is a non-halogen material, it does not emit toxic halogen gases or corrosive gases when burned. Applications: ●For connecting stranded wires of soft steel. Specifications: ●Wire clamping range Stranded wire (mm2): 2.63-4.6 ●Wire clamping range AWG: 12 ●Color: Transparent ●External diameter (mm): 8 ●Stud diameter (mm): 4.3 ●Total length (mm): 26 ●Inner dimension (mm): 6.3 ●JIS standard product: × ●Maximum operating temperature (℃): 125 ●Rated voltage (V): 600 ●Not compatible with solid wire Material/Finish: ●Terminal: Oxygen-free copper (electrolytic tin plated) ●Sleeve: Oxygen-free copper tube (electrolytic tin plated) ●Insulation: Polyvinyl chloride Caution: ●For copper wire only. ●Please use within the wire clamping range. ●Please use the applicable crimping tool specified by our company.
