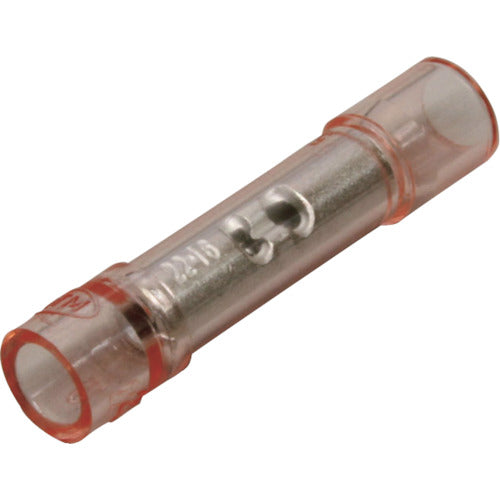

Nichifu Environmentally Friendly Insulated Crimp Sleeve (B Type) 100 Pieces Red Transparent TMX BP-1.25RCL 1 PK

Catalog number: TMX BP-1.25RCL Features: ●Both sides are wide, making it easy to insert the wire. ●Combined with insulating coating for butting crimp sleeves. Applications: ●For butting connections of stranded wires of mild steel. Specifications: ●Wire clamping range Stranded wire (mm2): 0.5-1.65 ●Wire clamping range AWG: 20-16 ●Color: Red transparent ●Total length (mm): 25.5 ●External diameter (mm): 3.8 ●Inner dimension (mm): 1.7 ●JIS standard product: × ●L (mm): 15.0 ●Shape: Type B ●Insulation operating temperature range: -40℃ to +125℃ ●Rated voltage: 600V Material/Finish: ●Sleeve: Oxygen-free copper (electrolytic tin plating) ●Insulation: Polycarbonate
