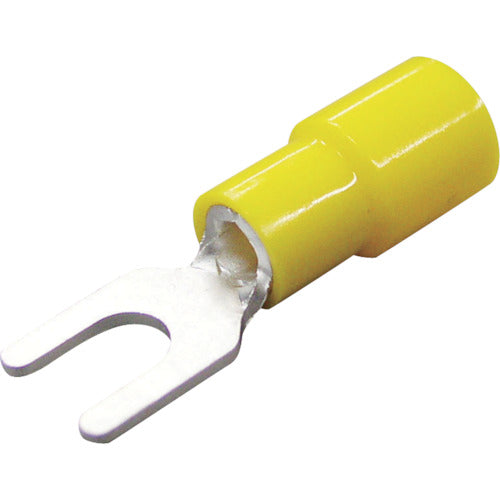

Nichifu Environmentally Friendly Insulated Crimp Terminal Y-Shaped (50P) TMEX 3.5Y-4-YEL 1 PK

Catalog number: TMEX 3.5Y-4-YEL Features: ●The insulation coating is pre-set in the terminal tube. ●Insulation shape: The TME type has a wire insertion guide (funnel-shaped) on the inside of the insulation coating. ●The core wire can be smoothly inserted into the tube along the guide with the coating stripped without twisting. Applications: ●For connecting stranded wires of soft steel. Specifications: ●Wire confinement range Stranded wire (mm2): 2.63 to 4.6 ●Wire confinement range AWG: 12 ●Color: Yellow ●Maximum operating temperature (℃): 125 ●Rated voltage (V): 600 Material/Finish: ●Terminal: Oxygen-free copper (electrolytic tin plated) ●Sleeve: Oxygen-free copper tube (electrolytic tin plated) ●Insulation: Polyvinyl chloride Caution: ●For copper wire only. ●Use within the wire confinement range. ●Use the applicable crimping tool specified by our company.
