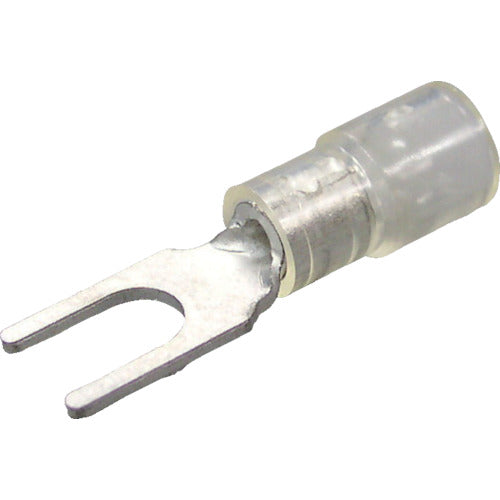

Nichifu Environmentally Friendly Insulated Y-Type Terminal (100 Pieces) Stranded Wire 0.3-1.65 Outer Dimensions 8.1mm Stud Diameter 4.3mm TMEX 1.25Y-4M-CLR 1 PK

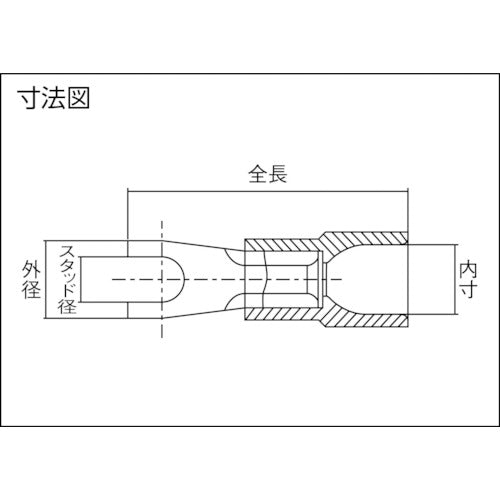

Catalog number: TMEX 1.25Y-4M-CLR Features: ●The insulating coating is pre-set in the terminal tube. ●Insulation shape: The TME type has a wire insertion guide (funnel-shaped) on the inside of the insulating coating. The core wire can be smoothly inserted into the tube along the guide with the coating stripped without twisting. ●Since it is made of non-halogen material, it does not generate toxic halogen gases or corrosive gases when burned. Applications: ●For connecting stranded wires of mild steel. Specifications: ●Wire clamping range Stranded wire (mm2): 0.3-1.65 ●Wire clamping range AWG: 22-16 ●Color: Transparent ●External dimension (mm): 8.1 ●Stud diameter (mm): 4.3 ●Total length (mm): 21.9 ●Inner dimension (mm): 4.1 ●JIS standard product: × ●Rated voltage (V): 600 ●External dimension (mm): 8.1 ●Number of pieces per pack: 100 ●Not compatible with solid wire ●Operating temperature range: -40℃ to 120℃ ●Complies with RoHS 10 substances Material/Finish: ●Terminal: Oxygen-free copper (electrolytic tin plating) ●Sleeve: Oxygen-free copper tube (electrolytic tin plating) ●Insulation: Polycarbonate Caution: ●For copper wire only. ●Please use within the wire clamping range. ●Please use the applicable crimping tool specified by our company.
