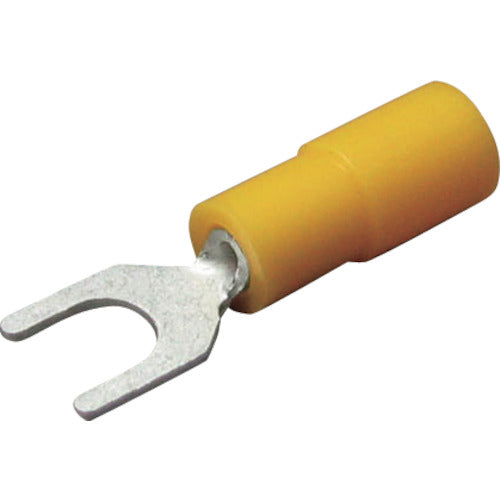

Nichifu Environmentally Friendly Insulated Crimp Terminal (Y Type) Open Type TMEX 0.3Y-3.5N-YEL (100P) TMEX 0.3Y-3.5N-YEL 1 PK

Catalog number: TMEX 0.3Y-3.5N-YEL Features: ●The insulating coating is pre-set in the terminal tube. ●Insulation shape: The TME type has a wire insertion guide (funnel-shaped) on the inside of the insulating coating. ●The core wire can be smoothly inserted into the tube along the guide with the coating stripped without twisting. ●Since it is made of non-halogen material, it does not generate toxic halogen gases or corrosive gases when burned. Applications: ●For connecting stranded wires of mild steel. Specifications: ●Wire clamping range Stranded wire ([MM2]): 0.2-0.5 ●Wire clamping range AWG: 24-20 ●Color: Yellow ●External dimension (mm): 5.8 ●Stud diameter (mm): 3.7 ●Total length (mm): 20.5 ●Inner dimension (mm): 2.8 ●Shape: Open tip ●JIS standard product: × ●Maximum operating temperature (℃): 125 ●Rated voltage (V): 600 ●External dimensions (mm): 5.8 ●Not compatible with solid wire ●Operating temperature range: -40℃ to 120℃ ●Complies with RoHS 10 substances Material/Finish: ●Terminal: Oxygen-free copper (electrolytic tin plated) ●Sleeve: Oxygen-free copper tube (electrolytic tin plated) ●Insulation: Polycarbonate Caution: ●For copper wire only. ●Please use within the wire clamping range. ●Please use the applicable crimping tool specified by our company.
