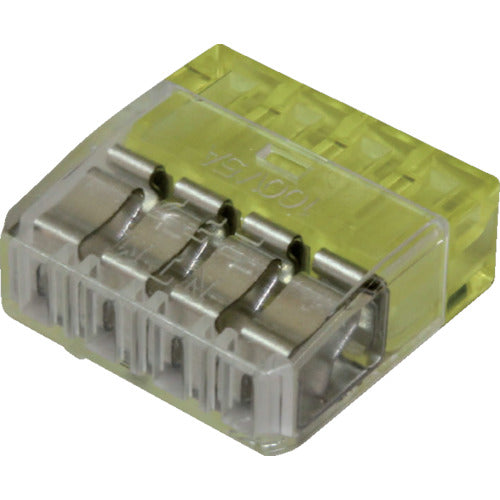

Nichifu Thin Wire Plug Connector, 4 poles (30 pieces) QLX MC-4 1 PK

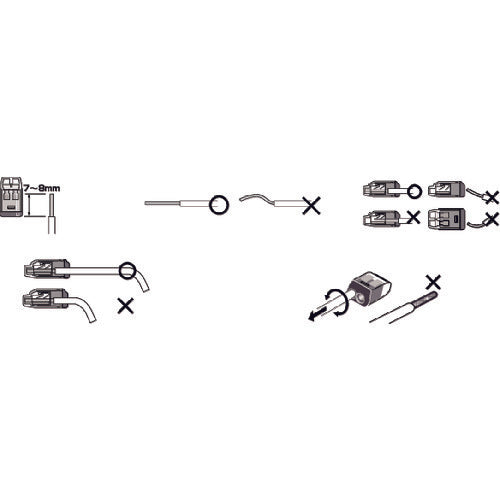

Catalog number: QLX MC-4 Features: ● Unique two-point contact spring structure. ● Wiring can be visually confirmed through the transparent cover. ● For thin wires. Applications: ● For wiring stripped wires together. Specifications: ● Number of poles: 4 ● Color: Yellow transparent ● Rated current: 5A ● Length (mm): 15 ● Rated current (A): 5 ● Compatible wire ([MM2]) Stranded wire: Not compatible with twisted wires ● Compatible wire (mm) φ solid wire: φ0.9-1.2 ● Width (mm): 15.4 ● Height (mm): 5.8 ● Rated voltage (V): 100 ● Compatible wire (mm) solid wire: φ0.9-1.2 ● Rated voltage: 100V ● Maximum operating temperature: 80°C Materials/Finish: ● Contact: Copper alloy ● Molded product: Polycarbonate (PC) Caution: ● Strip the wire coating to match the strip gauge. ● Straighten bent wires before use. ●Insert the wire until it stops. Once a wire has been connected, it cannot be reconnected.
