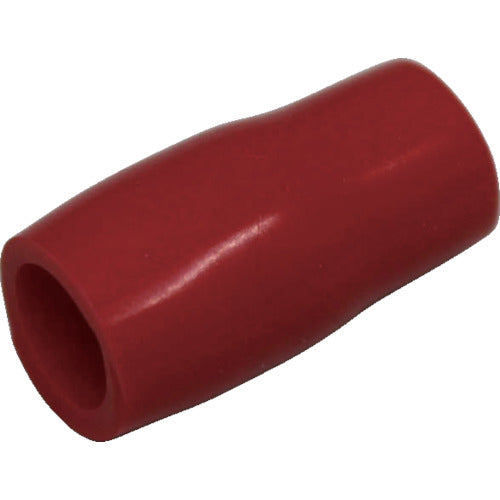

Nichifu Insulation Cap (20 pieces) Red Inner Dimension 37.5 TIC 250-RED 1 bag

Catalog number: TIC 250-RED Features: ●Seven insulator colors are available. Applications: ●For insulating bare crimp terminals. Specifications: ●Color: Red ●Total length (mm): 73 ●Inner dimensions (mm): 37.5 ●Compatible terminals: For 250 mm squared ●Maximum operating temperature (℃): 60 ●Rated voltage (V): 600 ●General use JSIA standard product (Japan Electrical Distribution Board Industry Association standard) ●Complies with ROHS Directive standards ●Maximum operating temperature: 60℃ Material/Finish: ●Polyvinyl chloride Caution: ●If used with EP rubber insulated wire, discoloration may occur.
