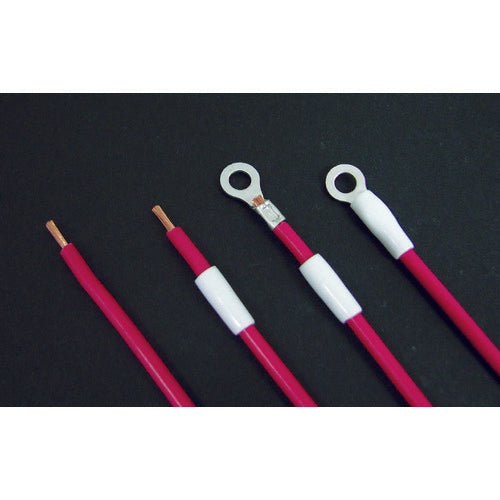

Nichifu Insulation Cap (50 pieces) Black Inner Dimension 22 TIC 100-BLK 1 bag

Catalog number: TIC 100-BLK Features: ●Seven insulator colors are available. Applications: ●For insulating bare crimp terminals. Specifications: ●Color: Black ●Total length (mm): 54 ●Inner dimensions (mm): 22 ●Compatible terminals: For 100 mm squared ●Maximum operating temperature (℃): 60 ●Rated voltage (V): 600 ●General use JSIA standard product (Japan Electrical Distribution Board Manufacturers Association standard) ●Rated voltage: 600V ●Complies with ROHS Directive standards ●Maximum operating temperature: 60℃ Material/Finish: ●Polyvinyl chloride Caution: ●If used with EP rubber insulated wire, discoloration may occur.
