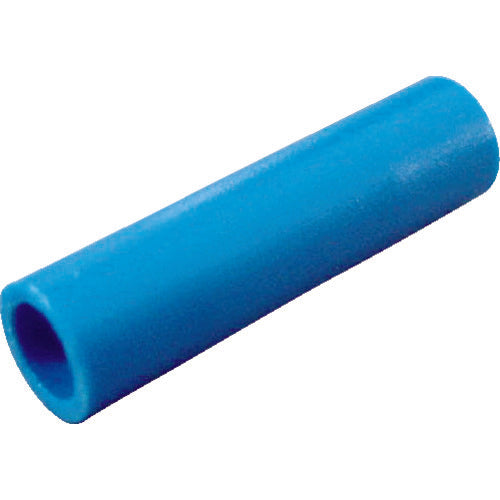

Nichifu Insulated Crimp Sleeve P Type (100 Pieces) TGV P-2-BLU 1 PK

Catalog number: TGV P-2-BLU Features: ●Combined with insulating coating for overlapping crimp sleeves. Applications: ●For connecting stranded soft steel wires. Specifications: ●Wire clamping range Stranded wire (mm2): 1.04-2.63 ●Wire clamping range AWG: 16-14 ●Color: Blue ●Total length (mm): 19 ●External diameter (mm): 3.9 ●Inner dimension (mm): 2.3 ●JIS standard product: × ●P type ●Compatible tools: Tools for crimp terminals and sleeves with insulating coating Material/Finish: ●Terminal: Oxygen-free copper (electrolytic tin plating) ●Sleeve: Oxygen-free copper tube (electrolytic tin plating) ●Insulation: Polyvinyl chloride Caution: ●Used to connect soft copper stranded wires. ●Use within the wire clamping range. ●Use the applicable crimping tools specified by our company.
