Nichifu Insulated Crimp Terminal R Type (100 Pieces) Stranded Wire 2.63 to 6.64 TGV 5.5-5S-YEL 1 PK

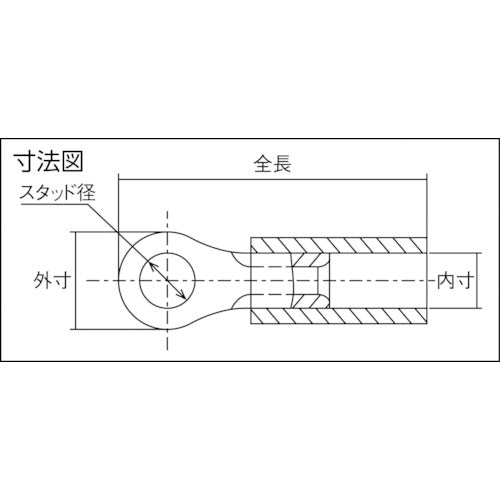

Catalog number: TGV 5.5-5S-YEL Features: ● An insulated crimp terminal with a rounded contact surface (tongue) and mounting holes for screw fixing. Applications: ● For connecting soft steel stranded wires. Specifications: ● Wire clamping range Stranded wire (mm2): 2.63 to 6.64 ● Wire clamping range AWG: 12/10 ● Color: Yellow ● Stud diameter (mm): 5.3 ● Total length (mm): 25.7 ● Inner dimensions (mm): 5.4 ● JIS standard product: × ● Rated voltage (V): 300 ● External dimensions (mm): 9.5 ● Insulated crimp terminal (round) Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating ● Insulation: Polyvinyl chloride Caution: ● Used to connect soft copper stranded wires. ● Use within the wire clamping range. ● Use the applicable crimping tool specified by our company.
