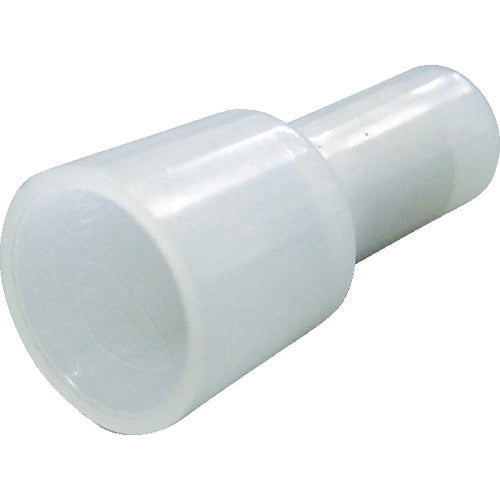

Nichifu Insulated Closed End Connector CE Type (100 Pieces) CE-2 1 Bag

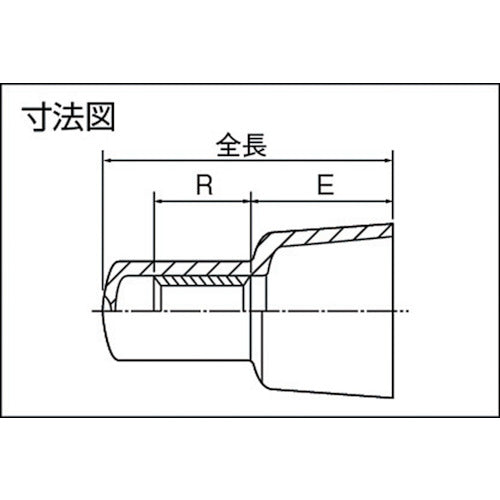

Catalog number: CE-2 Features: ●One side of the insulation coating is closed. ●Complies with RoHS directive. Applications: ●For connecting multiple wires by overlapping them in wiring inside equipment. Specifications: ●Wire clamping range Stranded wire (mm2): 1.0-3.00 ●Wire clamping range AWG: 16-14 ●Rated current (A): 12 ●Total length (mm): 21.0 ●R (mm): 7.3 ●E (mm): 9.6 ●Inner diameter (mm): 8 ●Compatible tools: Closed end connector tool ●JIS C2807 standard product ●Rated voltage (V): 300V ●Color: Milky white Material/Finish: ●Connector: Oxygen-free copper (C1020)/Electrolytic tin plating ●Insulation: Nylon Caution: ●For copper wire only. ●For use inside equipment. Cannot be used for indoor wiring. ●Use within the wire clamping range. ●Use as soon as possible after opening. ●Please be careful when storing as it is absorbent.
