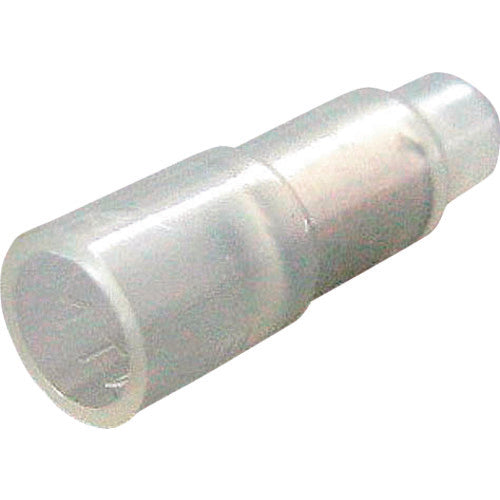

Nichifu Insulated closed end connector EC type (1000P) EC 05-1 1 PK

Catalogue number: EC 05-1 Features: ● A terminal that is attached to the end of an electric wire to connect two electric wires. Applications: ● Inside household electrical equipment. Specifications: ● Wire clamping range Stranded wire (mm2): 0.13-0.9 ● Wire clamping range AWG: 26-18 ● Color: Milky white ● Total length (mm): 13.0 ● Inner dimensions (mm): 1.6 Material/Finish: ● Connector: Oxygen-free copper (electrolytic tin plating) ● Insulation: Nylon Caution: ● For copper wire only. ● Use within the wire clamping range. ● Use the applicable crimping tool specified by our company. ● Use as soon as possible after opening. ● This product is water absorbent, so please take care when storing it.
