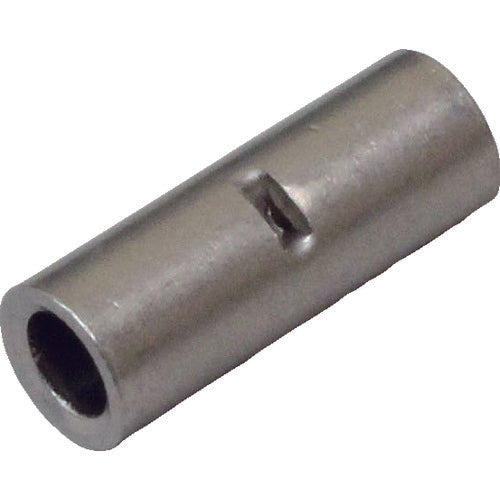

Nichifu Heat Resistant Sleeve B Type (100 Pieces) NB 2 1 PK

Catalog number: NB 2 Features: ●Connects wires by butting them together inside the sleeve. ●For use with nichrome and nickel wires only. Specifications: ●Wire clamping range, stranded wire (mm2): 1.25-2 ●Wire clamping range, nichrome and nickel solid wire (mm): 1.5-1.8 ●Wire clamping range, nickel stranded wire (mm2): 1.25-2 ●Wire clamping range, solid wire (mm): 1.5-1.8 ●Total length (mm): 15 ●External diameter (mm): 4.1 ●Inner dimension (mm): 2.3 ●JIS standard product: × ●Compatible tools: Tools for bare crimp terminals and sleeves ●Number of pieces per pack: 100 ●B type ●Heat resistance: 400℃MAX Material/Finish: ●Terminal: Nickel material Caution: ●The wire clamping range is for single wire use for both solid and stranded wires. ●Please use the applicable crimping tool specified by our company. ●The applicable tools are also used for crimp terminals for copper wire, so if heat-resistant terminals are used, the durability will be reduced.
