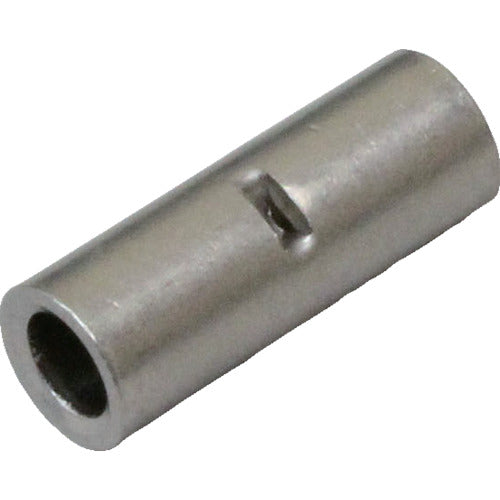

Nichifu Heat Resistant Sleeve B Type (100 Pieces) NB 5.5 1 PK

Catalog number: NB 5.5 Features: ●Connects wires by butting them together inside the sleeve. ●For use with nichrome and nickel wires only. Specifications: ●Wire clamping range, stranded wire (mm2): 3.5-5.5 ●Wire clamping range, nichrome and nickel solid wire (mm): 2.0-2.6 ●Wire clamping range, nickel stranded wire (mm2): 3.5-5.5 ●Wire clamping range, solid wire (mm): 2.0-2.6 ●Total length (mm): 15 ●External diameter (mm): 5.4 ●Inner dimension (mm): 3.5 ●JIS standard product: × ●Compatible tools: Tools for bare crimp terminals and sleeves ●Number of pieces per pack: 100 ●B type ●Heat resistance: 400℃ MAX Material/Finish: ●Terminal: Nickel material Note: ●The wire clamping range is for single wire use for both solid and twisted wires. ●Please use the applicable crimping tool specified by our company. ●The applicable tool is also used for crimping terminals for copper wire, so if you use heat-resistant terminals, the durability will be reduced.
