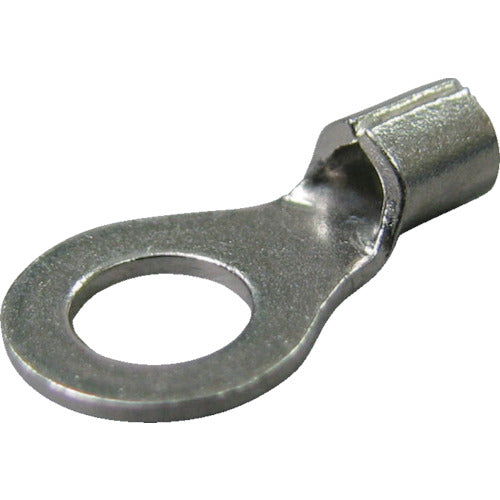

Nichifu Heat resistant terminal (R type) (100 pieces) N 1.25-5 1 PK

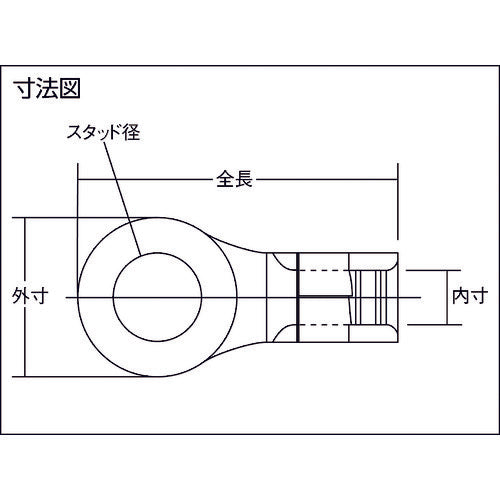

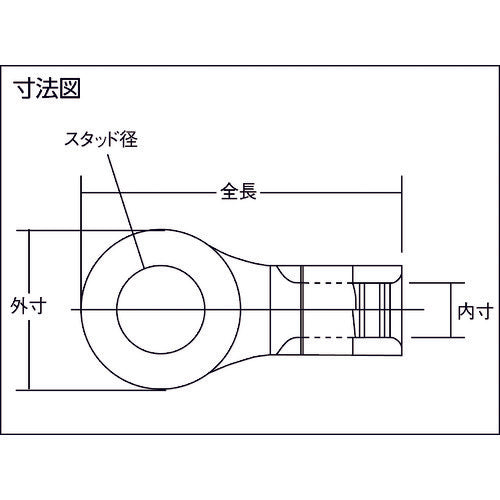

Catalog number: N 1.25-5 Features: ●Heat-resistant nickel material. ●Bare crimp terminal with rounded contact surface (tongue) and mounting hole for screw fixing. ●For use with nichrome and nickel wires only. Applications: ●For connecting heater wires and electric heating wires. Specifications: ●Wire clamping range Solid wire (mm): 0.6-1.4 ●Outer diameter (mm): 8 ●Stud diameter (mm): 5.3 ●Total length (mm): 15.6 ●Inner dimension (mm): 1.7 ●Wire clamping range Nichrome/nickel solid wire (mm): 0.6-1.4 ●Wire clamping range Nickel stranded wire (mm2): 3.5-5.5 ●JIS standard product: × ●Color: Silver ●Number of pieces per pack: 100 ●Round shape ●Heat resistance: 400℃ MAX ●Compatible tools: Tools for bare crimp terminals and sleeves ●Complies with ROHS directive standards Material/Finish: ●Nickel material Caution: ●The wire clamping range is the range for using one wire for both solid and twisted wires. ●Please use the applicable crimping tool specified by our company. ●The applicable tool is also used for copper wire crimp terminals, and durability will be reduced if heat-resistant terminals are used.
