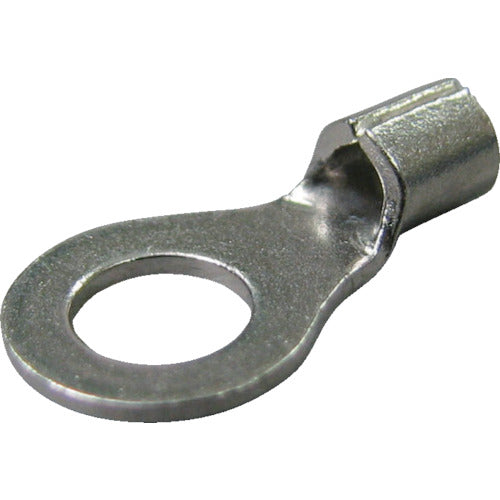

Nichifu Heat resistant terminal (R type) (100 pieces) N 14-8 1 PK

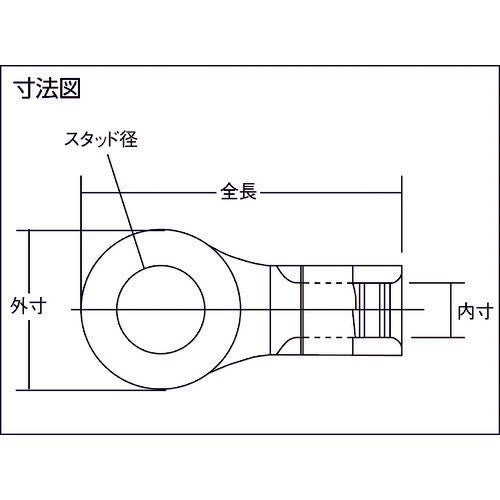

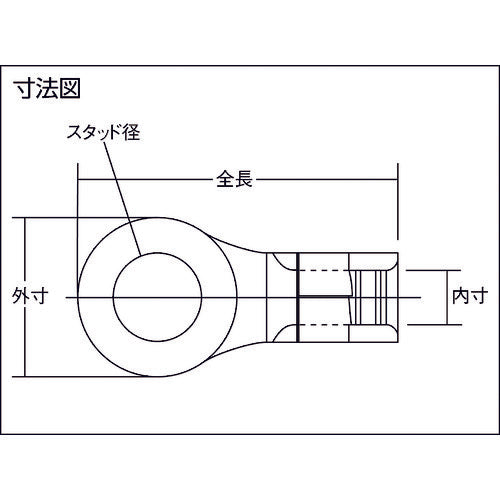

Catalog number: N 14-8 Features: ●Heat-resistant nickel material. ●A bare crimp terminal with a rounded contact surface (tongue) and a mounting hole for screw fixing. ●For use with nichrome nickel wire only. Applications: ●For connecting heater wires and electric heating wires. Specifications: ●Wire clamping range Single wire (mm): 3.7-4.6 ●Outer diameter (mm): 16 ●Stud diameter (mm): 8.4 ●Total length (mm): 32.5 ●Inner dimension (mm): 5.8 ●Wire clamping range Nichrome nickel solid wire (mm): 3.7-4.6 ●JIS standard product: × ●Color: Silver ●Number of pieces per pack: 100 ●Round shape ●Heat resistance: 400℃MAX ●Compatible tools: Tools for bare crimp terminals and sleeves ●Complies with ROHS directive standards Material/Finish: ●Nickel material Note: ●The wire clamping range is the range for using one wire for both solid and twisted wires. ●Please use the applicable crimping tool specified by our company. ●The applicable tool is also used for crimping terminals for copper wire, so if you use heat-resistant terminals, the durability will be reduced.
