Nichifu heat-resistant terminal (R type) (100P) External dimensions 9.5 mm, stud diameter 5.3 mm, N 2-5 1 PK

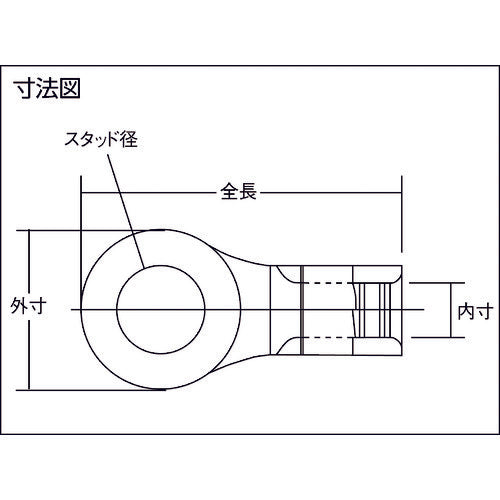

Catalog number: N 2-5 Features: ●Heat-resistant nickel material. ●A bare crimp terminal with a rounded contact surface (tongue) and a mounting hole for screw fixing. ●For use with nichrome nickel wire only. Applications: ●For connecting heater wires and electric heating wires. Specifications: ●Wire clamping range Single wire (mm): 1.5-1.8 ●External diameter (mm): 9.5 ●Stud diameter (mm): 5.3 ●Total length (mm): 17 ●Inner dimension (mm): 2.3 ●Wire clamping range Nichrome nickel solid wire (mm): 1.5-1.8 ●JIS standard product: × ●Color: Silver ●Number of pieces per pack: 100 ●Round ●Heat resistance: 400℃MAX ●Compatible tools: Tools for bare crimp terminals and sleeves ●Complies with ROHS directive standards Material/Finish: ●Nickel material Note: ●The wire clamping range is the range for using one wire for both solid and twisted wires. ●Please use the applicable crimping tool specified by our company. ●The applicable tool is also used for crimping terminals for copper wire, so if you use heat-resistant terminals, the durability will be reduced.
