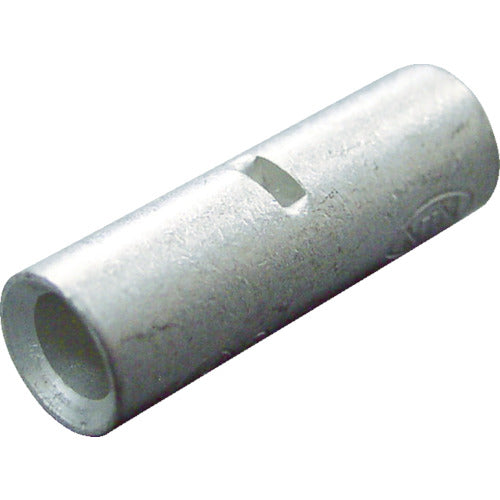

Nichifu bare crimp sleeve B type (100P) B 8 1 PK

Catalog number: B 8 Features: ● Connects wires by butting them together inside the sleeve. Applications: ● For connecting soft steel stranded wire or solid wire. Specifications: ● Wire clamping range Stranded wire (mm2): 6.64-10.52 ● Wire clamping range Solid wire (mm): 2.89-3.65 ● Wire clamping range AWG: 8 ● Total length (mm): 21.0 ● Inner dimensions (mm): 4.5 ● JIS standard product: ○ ● Compatible tools: Tools for bare crimp terminals and sleeves ● External dimensions (mm): 7.0 ● Type B ● ROHS Directive compliant product ● Made in an ISO9001 certified factory Material/Finish: ● Oxygen-free copper (C1020)/Electrolytic tin plating Caution: ● For copper wire only. ● Use within the wire clamping range. ● Use the applicable crimping tool specified by our company.
