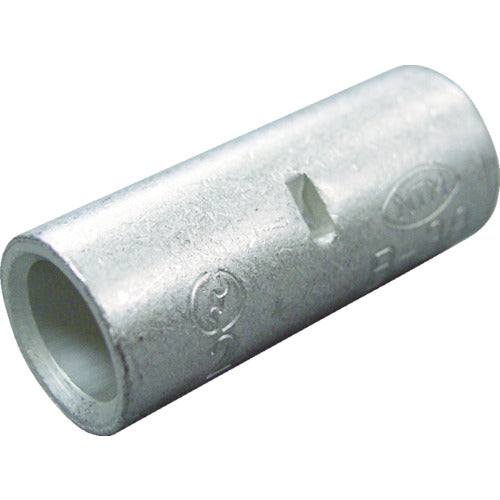

Nichifu bare crimp sleeve B type (1Pk (piece) = 100 pieces) B 38 1 PK

Catalog number: B 38 Features: ● Connects wires by butting them together inside the sleeve. Applications: ● For connecting stranded soft steel wires. Specifications: ● Wire clamping range Stranded wire (mm2): 26.66-42.42 ● Wire clamping range AWG: 2 ● Total length (mm): 32.0 ● Inner dimensions (mm): 9.4 ● JIS standard product: ○ ● Compatible tools: Tools for bare crimp terminals and sleeves ● External dimensions (mm): 13.2 ● Type B ● ROHS Directive compliant product ● Made in an ISO9001 certified factory Material/Finish: ● Oxygen-free copper (C1020)/Electrolytic tin plating Caution: ● For copper wire only. ● Use within the wire clamping range. ● Use the applicable crimping tools specified by our company.
