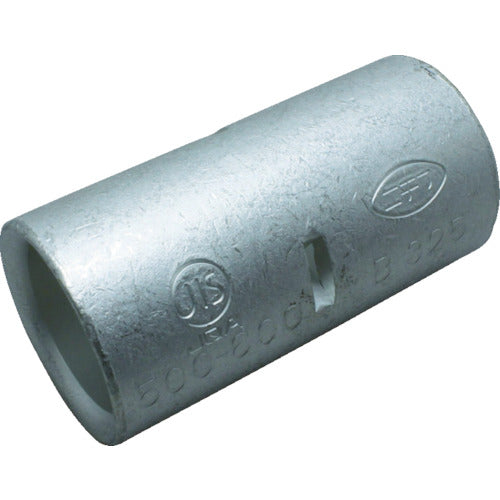

Nichifu bare crimp sleeve B type (1Pk (piece) = 5 pieces) B 325 1 PK

Catalogue number: B 325 Features: ●Connects wires by butting them together inside the sleeve. Applications: ●For connecting stranded soft steel wires. Specifications: ●Wire clamping range (stranded wire (mm2): 242.27-325 ●Wire clamping range AWG: 500-600MCM ●Total length (mm): 72.0 ●Inner dimensions (mm): 28 ●JIS standard product: ○ ●Compatible tools: Tools for bare crimp terminals and sleeves ●External dimensions (mm): 37.0 ●B type ●Complies with ROHS Directive standards ●Made in an ISO9001 certified factory Material/Finish: ●Oxygen-free copper (C1020)/Electrolytic tin plating Caution: ●For copper wire only. ●Use within the wire clamping range. ●Use the applicable crimping tools specified by our company.
