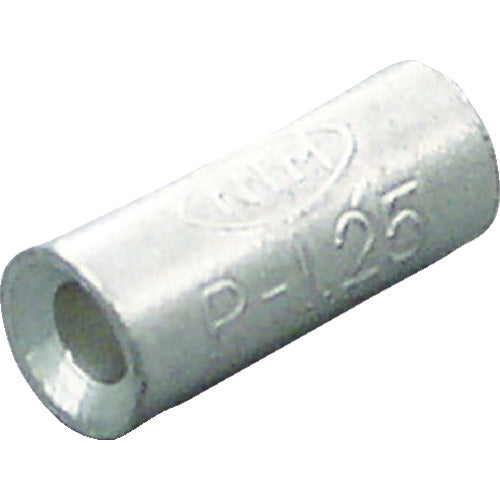

Nichifu bare crimp sleeve P type (100P) P 1.25 1 PK

Catalog number: P 1.25 Features: ●Connects wires by overlapping them inside the sleeve. Applications: ●For connecting stranded soft steel wires. Specifications: ●Wire clamping range Stranded wire (mm2): 0.25-1.65 ●Wire clamping range AWG: 22-16 ●Total length (mm): 8 ●Inner dimensions (mm): 1.8 ●JIS standard product: × ●Compatible tools: Tools for bare crimp terminals and sleeves ●External dimensions (mm): 3.3 ●P type Material/Finish: ●Oxygen-free copper (C1020)/Electrolytic tin plating Caution: ●For copper wire only. ●Use within the wire clamping range. ●Use the applicable crimping tool specified by our company.
