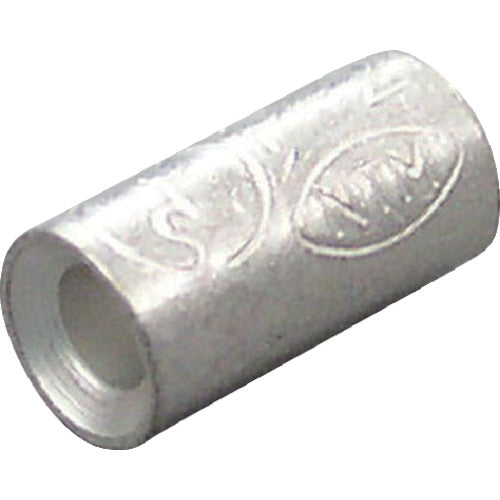

Nichifu bare crimp sleeve P type (100P) P 2 1 PK

Catalog number: P 2 Features: ●Connects wires by overlapping them inside the sleeve. Applications: ●For connecting stranded soft steel wires. Specifications: ●Wire clamping range Stranded wire (mm2): 1.04-2.63 ●Wire clamping range AWG: 16-14 ●Total length (mm): 8 ●Inner dimensions (mm): 2.3 ●JIS standard product: Yes ●Compatible tool: NH-1 (Nichifu hand tool) ●External dimensions (mm): 4.1 ●Made in an ISO9001 certified factory Material/Finish: ●Oxygen-free copper (C1020)/Electrolytic tin plating Caution: ●For copper wire only. ●Use within the wire clamping range. ●Use the applicable crimping tool specified by our company.
