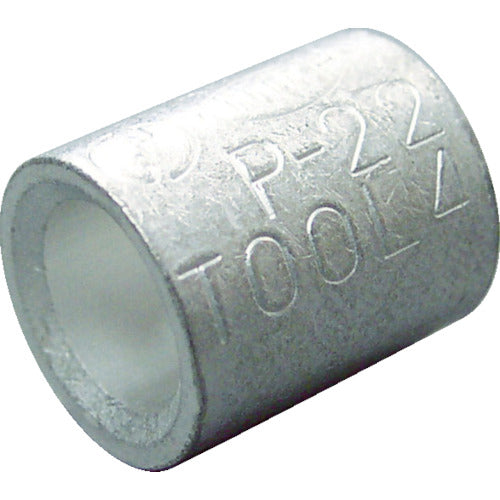

Nichifu bare crimp sleeve P type (100P) P 22 1 PK

Catalogue number: P 22 Features: ●Connects wires by overlapping them inside the sleeve. Applications: ●For connecting stranded soft steel wires. Specifications: ●Wire clamping range Stranded wire (mm2): 16.78-26.66 ●Wire clamping range AWG: 4 ●Total length (mm): 13.5 ●Inner dimensions (mm): 7.7 ●JIS standard product: Yes ●Compatible tools: NOP 60 (Nichifu hand tools) ●External dimensions (mm): 11.3 ●Made in an ISO9001 certified factory Material/Finish: ●Oxygen-free copper (C1020)/Electrolytic tin plating Caution: ●For copper wires only. ●Use within the wire clamping range. ●Use the applicable crimping tools specified by our company.
