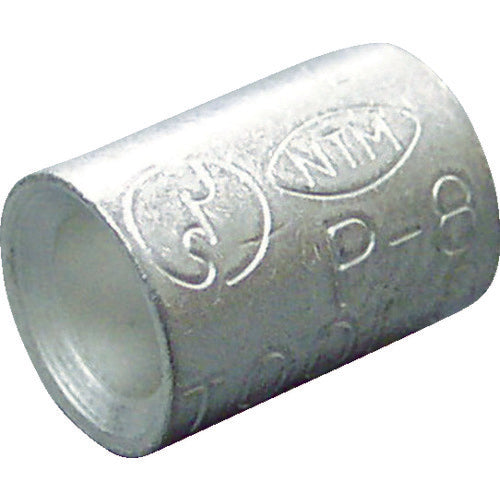

Nichifu bare crimp sleeve P type (100P) P 8 1 PK

Catalogue number: P 8 Features: ●Connects wires by overlapping them inside the sleeve. Applications: ●For connecting stranded soft steel wires. Specifications: ●Wire clamping range Stranded wire (mm2): 6.64-10.52 ●Wire clamping range AWG: 8 ●Total length (mm): 9.5 ●Inner dimensions (mm): 4.5 ●JIS standard product: Yes ●Compatible tool: NH-1 (Nichifu hand tool) ●External dimensions (mm): 7 ●Made in an ISO9001 certified factory Material/Finish: ●Oxygen-free copper (C1020)/Electrolytic tin plating Caution: ●For copper wire only. ●Use within the wire clamping range. ●Use the applicable crimping tool specified by our company.
