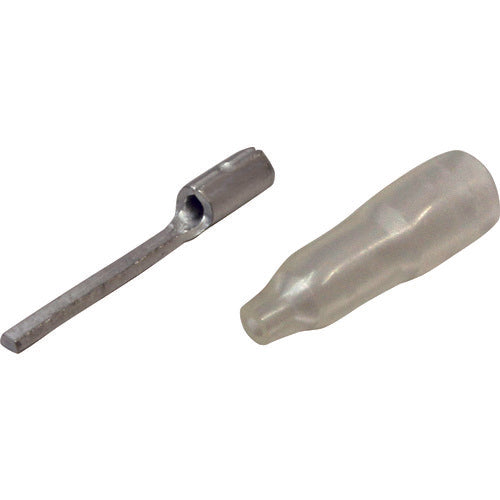

Nichifu bare crimp terminal (BT type) Blade type with insulating cap (50 pcs) BT 0.3-11-C 1 box

Catalog number: BT 0.3-11-C Features: ● Bare blade terminal with a plate-shaped contact surface (tongue). Applications: ● For connecting soft steel stranded wire or solid wire. Specifications: ● Wire clamping range Stranded wire (mm2): 0.2-0.5 ● Wire clamping range AWG: 24-20 ● Total length (mm): 16.7 ● Inner dimensions (mm): 1.0 ● JIS standard product: × ● Color: Silver ● Wire compatibility range AWG: 24-20 ● Wire compatibility range Stranded wire (mm2): 0.2-0.5 ● External dimensions (mm): 1.2 ● Blade length: 11.0 ● Insulation cap rated voltage: 600V Material/Finish: ● Terminal: Oxygen-free copper (electrolytic tin plating) ● Insulation cap: Polyvinyl chloride Caution: ● For copper wire only. ● Use within the wire clamping range. ● Use the applicable crimping tool specified by our company.
