Nichifu bare crimp terminal R type (100P) stranded wire 0.25 to 1.65 outer dimensions 12 R 1.25-6 1 PK

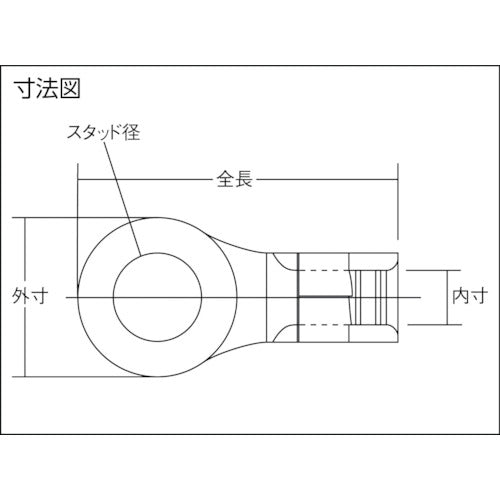

Catalog number: R 1.25-6 Features: ● A bare crimp terminal with a rounded contact surface (tongue) and a mounting hole for screw fixing. Applications: ● For connecting stranded soft steel wires. ● Used to connect stranded or solid soft copper wires. Specifications: ● Wire clamping range Solid wire (mm): 0.57-1.44 ● Wire clamping range Stranded wire (mm2): 0.25-1.65 ● Wire clamping range AWG: 22-16 ● External diameter (mm): 12 ● Stud diameter (mm): 6.4 ● Total length (mm): 20.2 ● Internal dimension (mm): 1.7 ● JIS standard product: × ● Color: Silver ● Round Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating Caution: ● For copper wire only. ● Use within the wire clamping range. ● Use the applicable crimping tool specified by our company.
