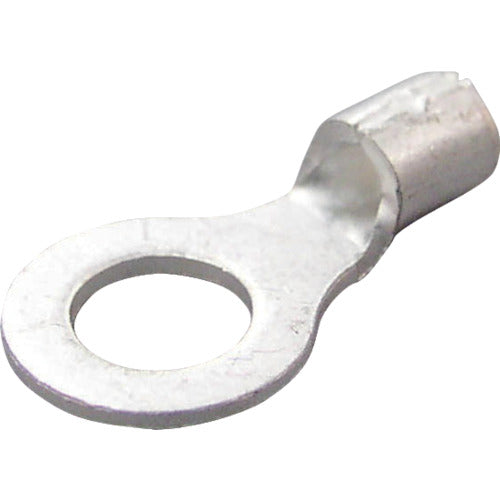

Nichifu bare crimp terminal R type (100P) stranded wire 0.2-0.5 External dimensions 5.2 R 0.3-3 1 PK

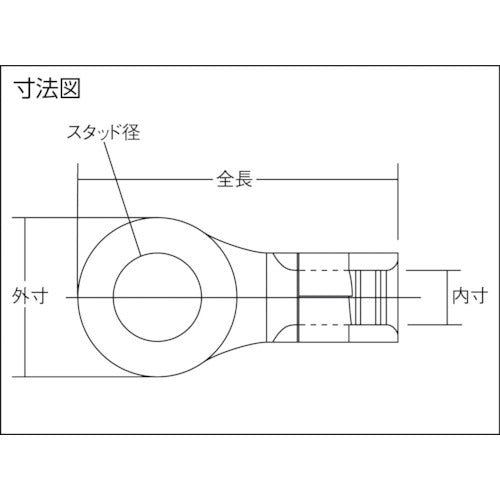

Catalog number: R 0.3-3 Features: ● A bare crimp terminal with a rounded contact surface (tongue) and mounting holes for screw fixing. Applications: ● For connecting stranded soft steel wires. Specifications: ● Wire clamping range Stranded wire (mm2): 0.2-0.5 ● Wire clamping range AWG: 24-20 ● External diameter (mm): 5.2 ● Stud diameter (mm): 3.2 ● Total length (mm): 12 ● Internal dimensions (mm): 1 ● JIS standard product: × ● Color: Silver ● Round Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating Caution: ● For copper wires only. ● Use within the wire clamping range. ● Use the applicable crimping tool specified by JIS or our company.
