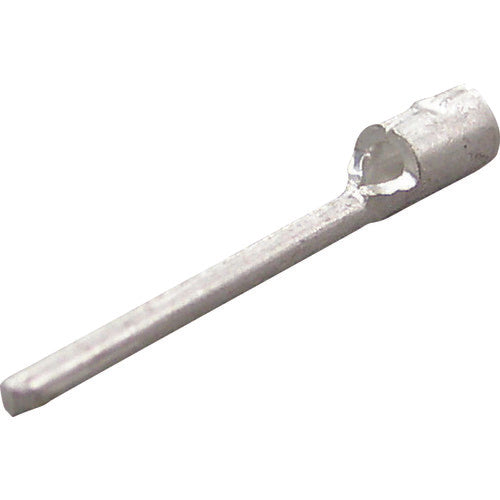

Nichifu Bare crimp terminal TC type (100P) TC 1.25-16S 1 PK

Catalog number: TC 1.25-16S Features: ● A rod-shaped terminal with a round bar contact surface (tongue). Applications: ● For connecting soft steel stranded wire or solid wire. Specifications: ● Wire clamping range Solid wire (mm): 0.57-1.44 ● Wire clamping range Stranded wire (mm2): 0.25-1.65 ● Wire clamping range AWG: 22-16 ● Stud diameter (mm): 1.5 ● Total length (mm): 22.0 ● Inner dimension (mm): 1.7 ● F (mm): 16 ● Color: Silver ● Shielding dimension (mm): 16.0 ● Shielding diameter (φ): 1.5 Material/Finish: ● Oxygen-free copper (C1020) ● Electrolytic tin plating Caution: ● For copper wire only. ● Use within the wire clamping range. ● Use the applicable crimping tool specified by our company.
