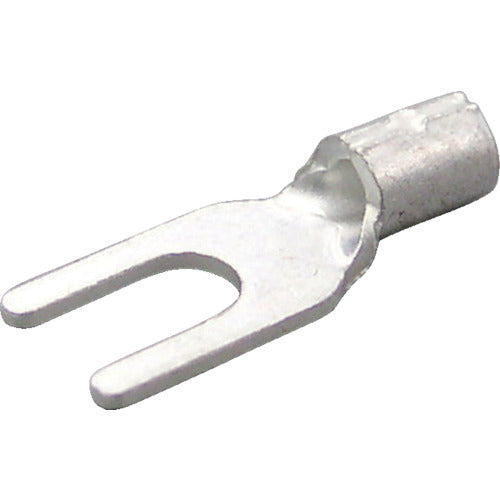

Nichifu bare crimp terminal Y type (100P) stranded wire 0.25-1.65 outer dimensions 4.7 1.25Y-2.5 1 PK

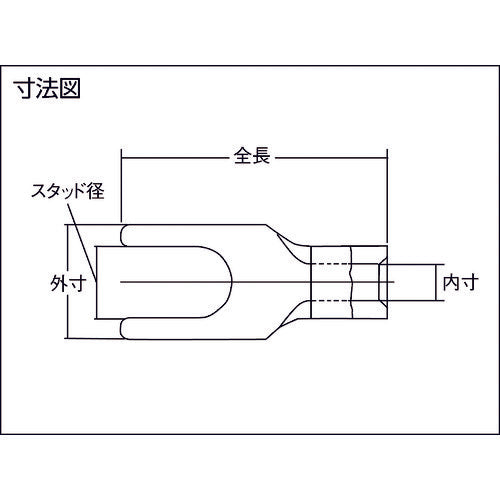

Catalog number: 1.25Y-2.5 Features: ●One side of the mounting hole on the contact surface (tongue) is open, so it can be installed without completely removing the screw. Applications: ●For connecting stranded soft steel wires. ●For connecting stranded soft steel wires or solid wires. Specifications: ●Wire clamping range Solid wire (mm): 0.57-1.44 ●Wire clamping range Stranded wire (mm2): 0.25-1.65 ●Wire clamping range AWG: 22-16 ●External diameter (mm): 4.7 ●Stud diameter (mm): 2.7 ●Total length (mm): 11.7 ●Inner dimension (mm): 1.7 ●JIS standard product: × ●Color: Silver ●External dimension (mm): 4.7 ●Y type Material/Finish: ●Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating Caution: ●For copper wire only. ●Please use within the range of wire clamping. ●Please use the applicable crimping tool specified by JIS standard or our company.
