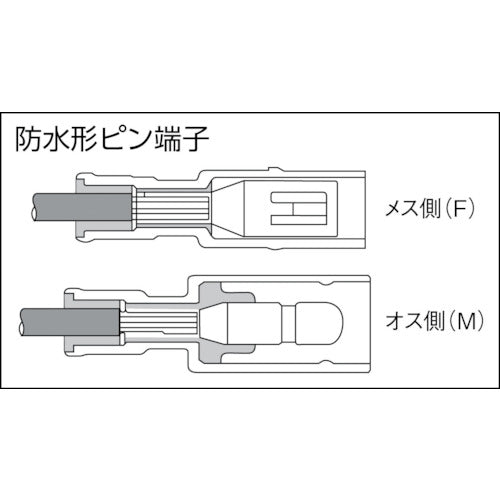

Catalog number: PC4009-M-WP Features: ●Waterproof cap keeps out water. ●Waterproof performance: Waterproof safety code IP57. (IEC529) Applications: ●Combination (fitting) of male side (M) and female side (F) allows for wire connection and relay within equipment, and where waterproof performance is required. Specifications: ●Wire clamping range Stranded wire (［［MM2］］): 0.75-1.25 ●Wire clamping range AWG: 18-16 ●Color: Red ●Shape: Male ●Outer diameter (mm): 7.4 ●Total length (mm): 27.7 ●Inner dimension (mm): 3.2 ●F (mm): 16.5 ●Rated voltage (V): 300 ●Compatible tool: NH-64 (Nichifu dedicated tool) ●Rated voltage: 300V ●Maximum operating temperature: 105℃ Material/Finish: ●Insulator: Nylon Caution: ●Be sure to use the dedicated tool NH-64.
