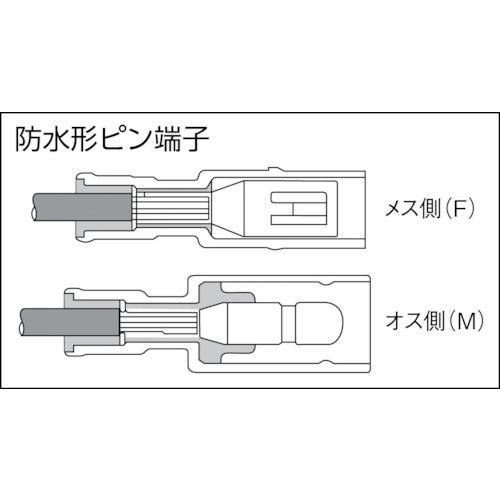

Catalog number: PC4009-F-WP Features: ●Waterproof cap keeps water out. ●Waterproof performance: Waterproof safety code IP57. (IEC529) Applications: ●By combining (fitting) the male side (M) and female side (F), wires can be connected and relayed within equipment, and can also be used where waterproof performance is required. Specifications: ● Wire clamping range stranded wire ([MM2]): 0.75 to 1.25 ● Wire clamping range AWG: 18-16 ● Color: Red ● Shape: Female ● Outer diameter (mm): 6.9 ● Total length (mm): 26.2 ● Inner dimension (mm): 3.2 ● F (mm): 15 ● Rated voltage (V): 300 ● Compatible tool: NH-64 (Nichifu special tool) ● d (mm): 3.2 ● L (mm): 26.2 ● Maximum operating temperature: 105°C Material/Finish: ● Insulation: Nylon Caution: ● Be sure to use the special tool NH-64.
