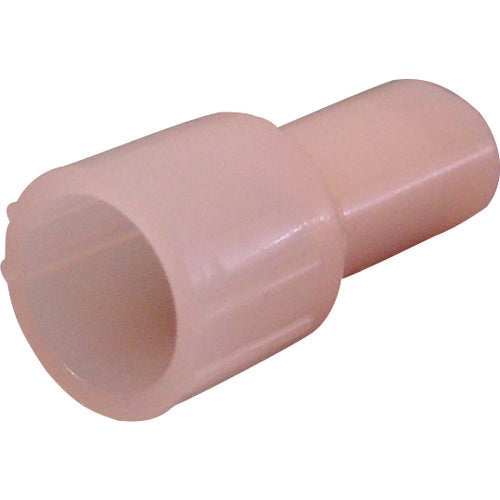

Nichifu Disaster Prevention Heat Resistant Closed End Connector SQ CE-2HP 100 Pieces SQ CE-2HP 1 Bag
Nichifu Disaster Prevention Heat Resistant Closed End Connector SQ CE-2HP 100 Pieces SQ CE-2HP 1 Bag
Regular price
¥4,738
Regular price
Sale price
¥4,738
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

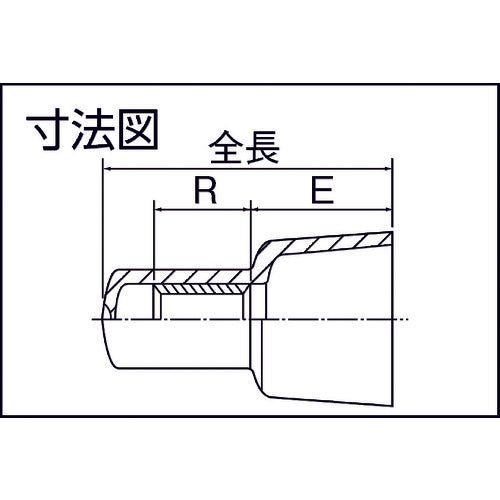

Catalog number: SQ CE-2HP Features: ● No need for the troublesome taping work of the conventional method, shortening work time. ● Passed the heat resistance test that reaches 380°C after 15 minutes as specified in Fire and Disaster Management Agency Notification No. 11. Applications: ● For connecting disaster prevention devices such as fire alarms. Specifications: ● Wire clamping range Stranded wire (mm2): 0.5 to 1.25 ● Rated current (A): 5 ● Total length (mm): 20.0 ● R (mm): 6.9 ● E (mm): 9.6 ● Inner diameter (mm): 7.6 ● JIS standard product: × ● Compatible tools: Disaster prevention heat-resistant closed end connection tool ● Wire clamping range Stranded wire mm2 ● Rated voltage: 300V ● Color: Red transparent Material/Finish: ● Cross-linked polyethylene Caution: ● Dedicated crimping tool: NH 40
