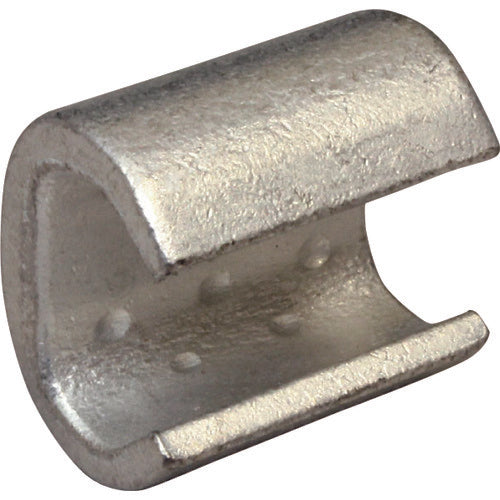

Nichifu T-shaped connector for branch connection (100 pieces) T 26 1 box

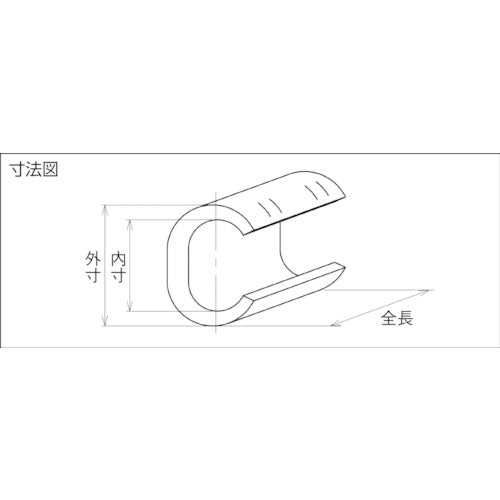

Catalog number: T 26 Features: ●Dimples and serrations are applied to the inside of the connector to increase connection reliability. ●Beveled inner and outer surfaces to prevent damage to the wire. ●Compression position is engraved. Applications: ●For branch connection of soft copper stranded wire. Specifications: ●Wire clamping range Stranded wire (mm2): 21-26 ●Color: Silver ●Total length (mm): 16.0 ●External dimensions (mm): 14.7 ●Inner dimensions (mm): 10.2 ●RoHS 10 substance compliant Material/Finish: ●Oxygen-free copper (tin plated) Caution: ●For copper wire only. ●Use within the wire clamping range. ●Use the applicable crimping tool specified by our company.
