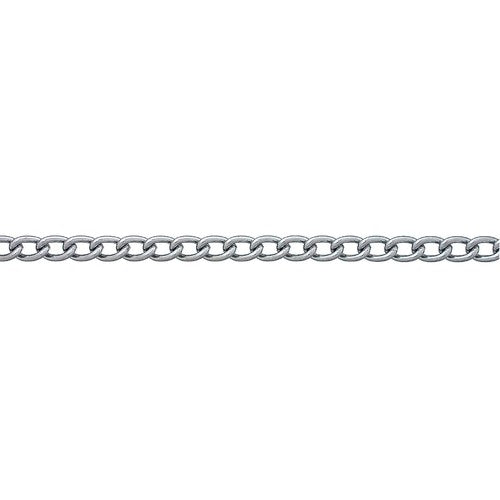

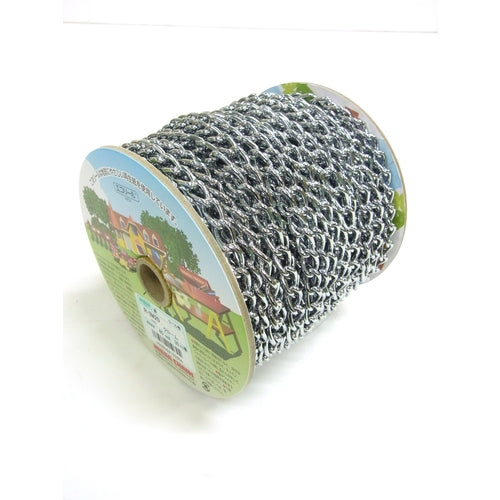

Catalog number: R-IM20-CR Features: ●The links are twisted 90 degrees, making this a beautifully finished and easy-to-handle chain. ●Since the product is wound on a reel, it is less likely to get tangled when in use. Applications: ●When used in combination with other parts, it can be used as a connecting part to prevent tipping over. Specifications: ●Name: IM20 ●Working load (kN): 0.392 ●A (mm): 8.9 ●B (mm): 3.4 ●Wire diameter (mm): 2.0 ●Reference working load (kg): 40 ●Breaking load (kg): 120 ●Chrome iron mantle 30m winding ●Reel-wound type Material/Finish: ●Body: Iron (SWRM6) Caution: ●The appropriate load varies depending on the conditions of use, such as applying a sudden load or hanging at an angle. Do not apply too much load.
