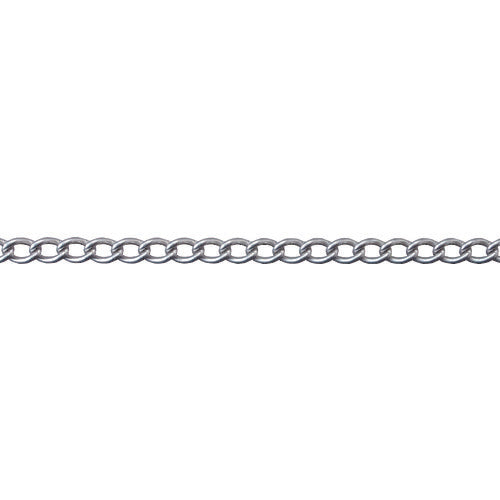

Catalog number: R-SM20 Features: ● A chain with links twisted 90 degrees, beautiful finish and easy to handle. ● As the product is wound on a reel, it is less likely to get tangled during use. ● Made of stainless steel, ideal for use around water. Applications: ● Can be used in combination with other parts to prevent tipping and as a connecting part. Specifications: ● Product name: SM20 ● Load capacity (kN): 0.588 ● A (mm): 8.7 ● B (mm): 3.4 ● Wire diameter (mm): 2.0 ● Reference load capacity (kg): 60 ● Breaking load (kg): 188 ● Surface treatment: Electrolytic polishing ● Stainless steel mantle 15m roll Material/Finish: ● Body: Stainless steel (SUS304) Caution: ● The appropriate load varies depending on the conditions of use, such as applying a sudden load or hanging at an angle. Do not apply too much load.
