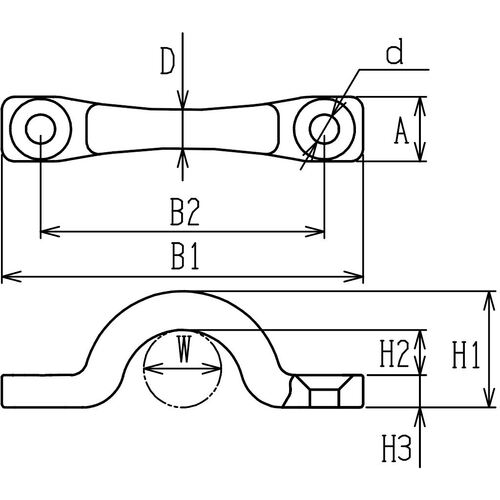

Catalog number: B-1461 Features: ●Since it is molded with a special mold, there is no need to worry about misalignment of the screw pitch. Applications: ●As a washer for mounting to walls and pillars. Specifications: ●Usable load (kN): 0.49 ●Surface treatment: Matte black ●A (mm): 10 ●D (mm): 6 ●B1 (mm): 56 ●B2 (mm): 44 ●d (mm): 4.5 ●H1 (mm): 18 ●H2 (mm): 7 ●H3 (mm): 5 ●W (mm): 12 ●Total length (mm): 56 ●Product name: IPF60 ●Reference usable load (kg): 50 ●Zinc die-cast ice strap Material/Finish: ●ZDC2 Note: ●The reference usable load is the value for the product itself, so it will vary depending on the strength of the installation location such as ceilings, walls, and pillars.
