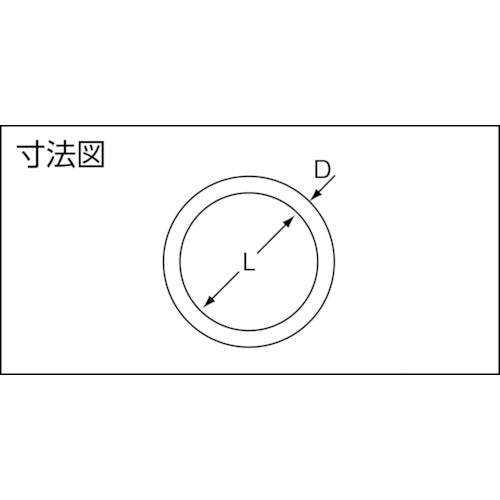

Catalog number: P-851 Features: ●Pressed, so there are no steps at the cut edge. Applications: ●For chain end fittings and joint fittings. Specifications: ●Working load (kN): 0.04 ●D (mm): 3 ●L (mm): 26 ●Wire diameter (mm): 3.0 ●Reference working load (kg): 4.0 ●Breaking load (kg): 56 ●IKR-25 x 15 pieces ●Stronger than W-ring. Material/Finish: ●Steel (SWRM6) ●Surface treatment: Nickel-plated finish Caution: ●Appropriate load varies depending on the conditions of use, such as applying a sudden load or hanging at an angle. Do not apply too much load.
