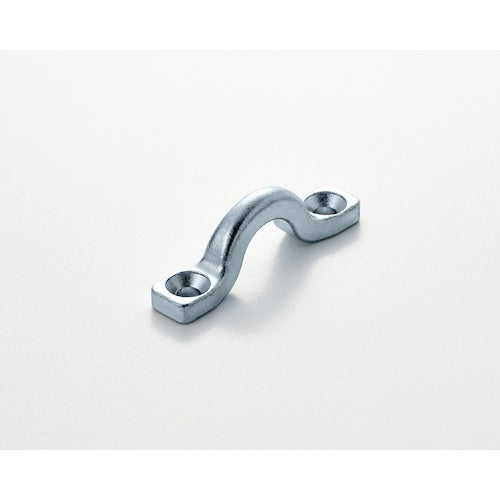

Catalog number: IPF50-UC Features: ●Since it is molded with a special mold, there is almost no deviation in the screw pitch. Uses: ●As a washer for mounting on walls and pillars. Specifications: ●Usable load (kN): 0.392 ●Breaking strength (kg): 250 ●Surface treatment: Unichrome ●A (mm): 9 ●D (mm): 5 ●B1 (mm): 45 ●B2 (mm): 34 ●d (mm): 4 ●H1 (mm): 14 ●H2 (mm): 5 ●H3 (mm): 4 ●W (mm): 9 ●Total length (mm): 45 ●Product name: IPF50 ●Reference usable load (kg): 40 ●Breaking load (kg): 250 ●Unichrome ice strap (50 pieces) Material/Finish: ●ZDC2 Note: ●The reference usable load is the value of the product itself, so it will vary depending on the strength of the installation location such as ceilings, walls, and pillars. ●The appropriate load varies depending on the conditions of use, such as applying a sudden load or hanging at an angle. Do not apply too much load.
