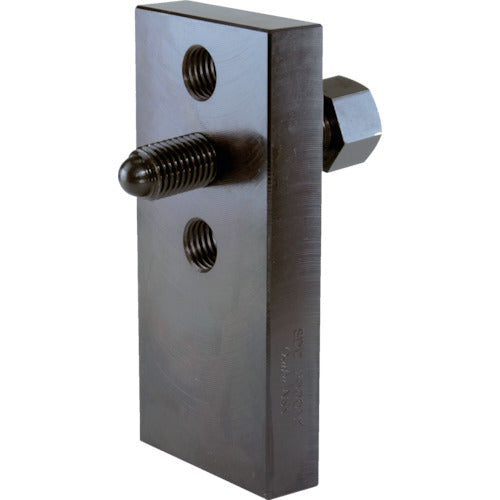

NEW STRONG Side Clamp for T-slot 28 SDC-2800NK 1 S

Catalog number: SDC-2800NK Features: ● Simply insert into the T-slot of a sub-table, etc. to set. ● The clamp bolt is tilted by 5 degrees to prevent it from floating up when clamping. ● Three screw hole positions for the clamp bolt are provided, so they can be changed as needed. ● The thickness is finished to 0 to -0.02 in order to insert into the T-slot. Applications: ● Positioning, parallel alignment, clamping work, etc. ● For clamping from the side. Specifications: ●Width (mm): 63 ●Depth (mm): 28 (0 to -0.02) ●Height (mm): 170 ●Stroke (mm): 43 ●Screw position from bottom (mm): 100, 125, 150 ●Screw position from bottom (mm): 100, 125, 150 ●Clamping stroke (mm): 43 Material/Finish: ●Main body: Steel (S50C) ●Clamping bolt: Steel (S45C) Set contents/Accessories: ●Main body, clamping bolt (CBA-1670NK) Caution: ●Set accurately in the T-slot.
