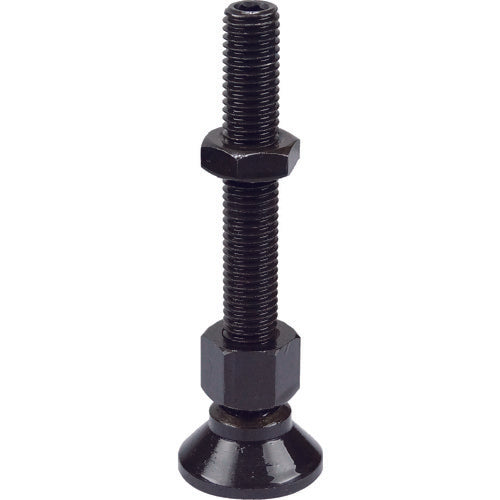

New Strong Swivel Pad Bolt Bolt Size 12mm CHS-4000 1 pc

Catalog number: CHS-4000 Features: ●Receiving bolt for clamp. ●Can be used even if the clamp is slightly tilted. ●Can also be used on T-slots. Applications: ●For adjusting the height of the fixture. Specifications: ●Height (mm): 100 ●Thread diameter: M12 ●Face size (mm): 19 ●Hexagonal wrench hole (mm): 6 ●Fixture for clamping Material/Finish: ●Steel (S45C) ●Treatment: Hardening (HRC30), black dye finish Set contents/Accessories: ●Single item ●12M-JN ●LP-12 Caution: ●Make sure that the angle is 90° to the machine bed. ●Do not tilt more than 30°.
