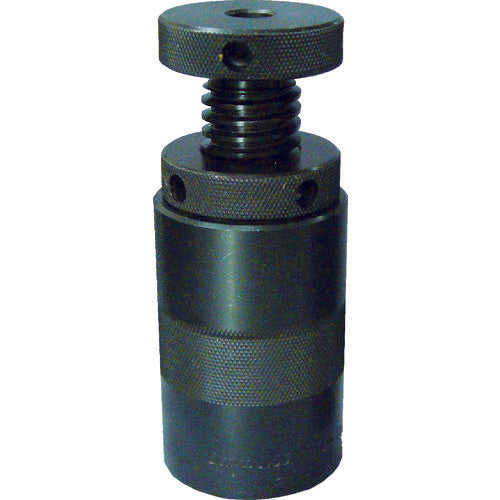

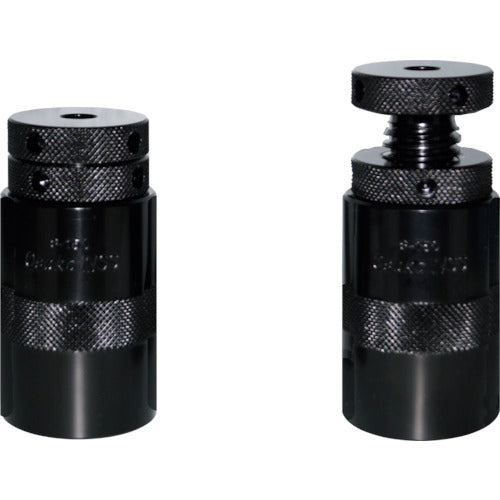

NEW STRONG Screw Support 100-150 2 pieces per set S-150 1 set
NEW STRONG Screw Support 100-150 2 pieces per set S-150 1 set
Regular price
¥12,050
Regular price
Sale price
¥12,050
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalogue number: S-150 Features: ● Support for clamps. ● Convenient for adjusting the height. Uses: ● Support for clamps. ● For adjusting the height of the workpiece. Specifications: ● Height (mm): 100-150 ● Load capacity (kN): 150 ● Upper tray diameter (mm): 45 ● Body diameter (mm): 50 Material/Finish: ● Steel (S45C) ● Treatment: Head hardening (HRC30-35), phosphate finish ● Treatment: Screw part (HRC30-35), phosphate coating treatment will be changed at any time. Caution: ● Make sure the clamp is not tilted up and down or left and right. ● Please note that it is difficult to achieve parallelism if cutting chips or other objects are caught during setting.
