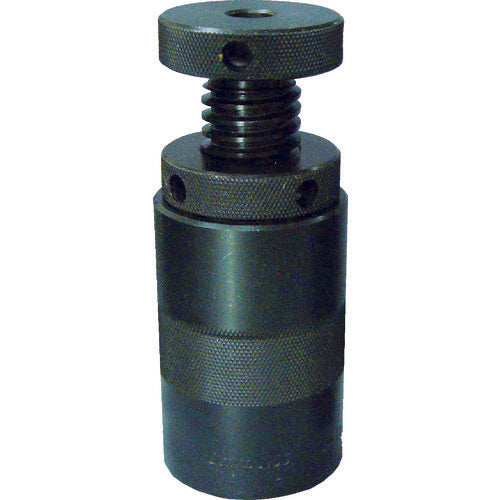

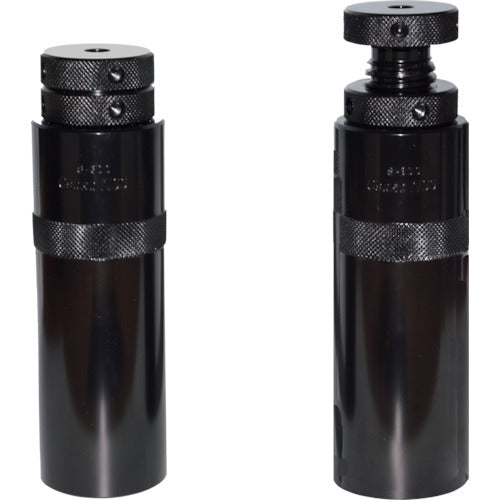

NEW STRONG Screw Support 200-300 2 pieces per set S-300 1 set
NEW STRONG Screw Support 200-300 2 pieces per set S-300 1 set
Regular price
¥27,787
Regular price
Sale price
¥27,787
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalogue number: S-300 Features: ● Support for clamps. ● Convenient for adjusting the height. Uses: ● Support for clamps. ● For adjusting the height of workpieces. Specifications: ● Height (mm): 250-300 ● Load capacity (kN): 200 ● Upper tray diameter (mm): 50 ● Body diameter (mm): 60 ● HRC35-47 ● Black dyeing Material/Finish: ● Steel (S45C) ● Treatment: Head hardening (HRC30-35), phosphate finish Caution: ● Check that the clamp is not tilted up and down or left and right. ● Please note that it will be difficult to achieve parallelism if cutting chips or other materials are caught when setting.
