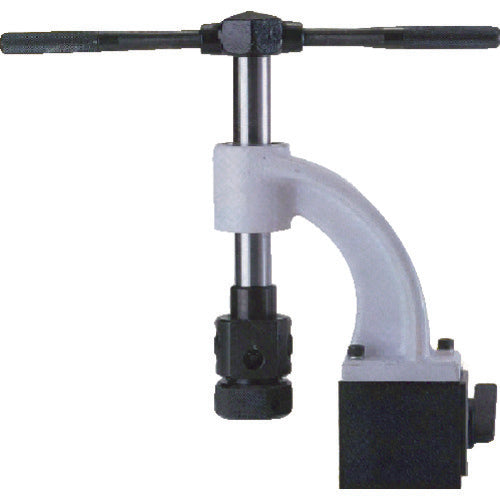

New Strong Tap Handle with Magnetic Holder M5 to M12 MTP-150 1 unit

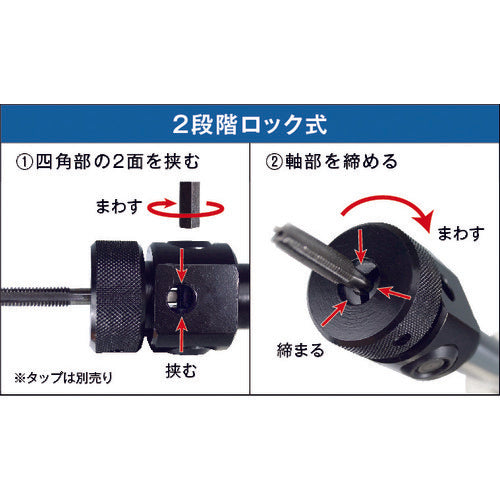

Catalogue number: MTP-150 Features: ● Useful when thread processing or thread correction does not require the use of machine tools. ● Comes with a magnetic holder, allowing smooth thread cutting of taps. ● Can be easily operated manually when you forget to tap or only need to process a few pieces. ● Can be used when the workpiece is too large to be machined. ● Suitable tap sizes are M3 to M12. ● Two-stage locking system. Applications: ● For threading work. ● For thread cutting. Specifications: ● Compatible tap dimensions: M3 to M12 ● Total height (mm): 315 ● Maximum stroke (mm): 75 ● Adsorption force (kN): 0.8 ● Adsorption method: Permanent magnet type ● Magnet dimensions: 50 x 60 x 55 mm ● Tap handle with magnet Material/Finish: ● Arm and handle mounting: Cast iron (FC300) ● Arm: Aluminum ● Shaft: Stainless steel ● Handle: S45C Set contents/Accessories: ● Single item Caution: ● The magnet may become displaced during operation due to the thin thickness of the adsorption steel material, high load work, or dirt on the adsorption surface. ● Keep away from precision equipment. ● Do not use if you have a pacemaker.
