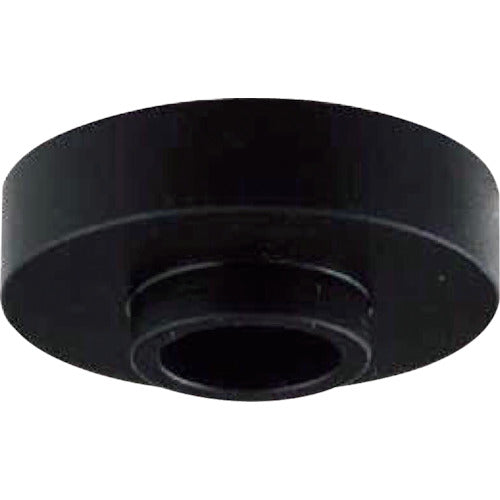

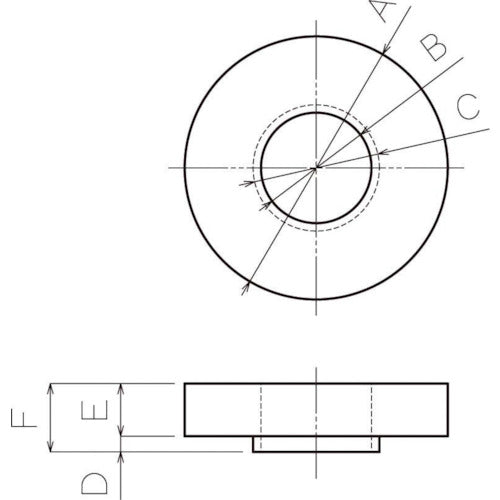

Catalog number: 1208-DFW Features: ●Ideal when the groove width of the bolt and clamp do not match. ●With a guide, it can be clamped at the center of the groove width. Applications: ●For clamping machining tools. ●For milling and machining. Specifications: ●Compatible bolt: M8 ●Outer diameter (mm): 25 ●Inner diameter (mm): 9 ●Height (mm): 9 ●Guide diameter: Φ12 ●Thickness: 6 ●Guide thickness: 3 ●Thread diameter (mm): 12 ●Total length (mm): 6 Material/Finish: ●Steel (S45C) Caution: ●The required torque may not be obtained because the bolt diameter is made smaller.
