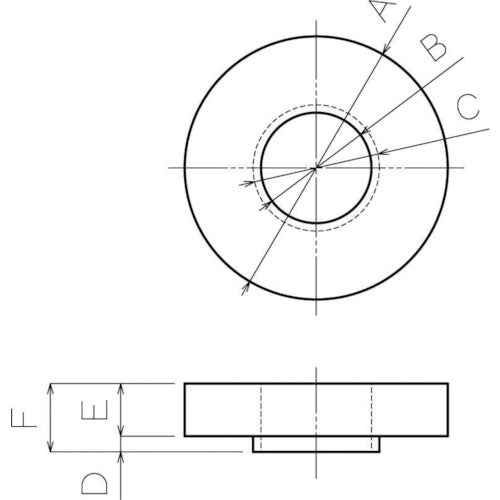

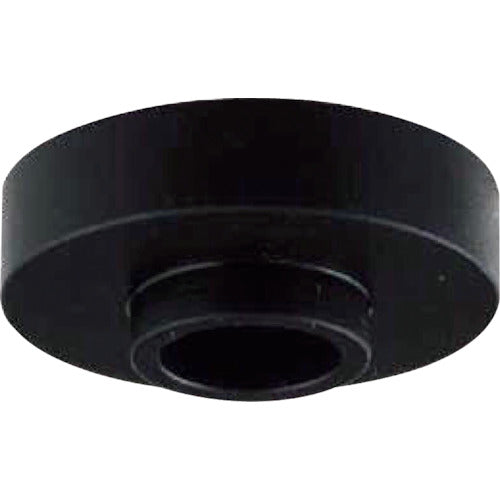

Catalog number: 2016-DFW Features: ●Ideal when the groove width of the bolt and clamp do not match. ●With a guide, it can be clamped at the center of the groove width. Applications: ●For clamping machining tools. ●For milling and machining. Specifications: ●Compatible bolt: M16 ●Outer diameter (mm): 40 ●Inner diameter (mm): 17 ●Height (mm): 11 ●Guide diameter: Φ20 ●Thickness: 8 ●Guide thickness: 3 ●Thread diameter (mm): 20 ●Total length (mm): 8 Caution: ●There is a possibility that the required torque will not be obtained because the bolt diameter is made smaller.
