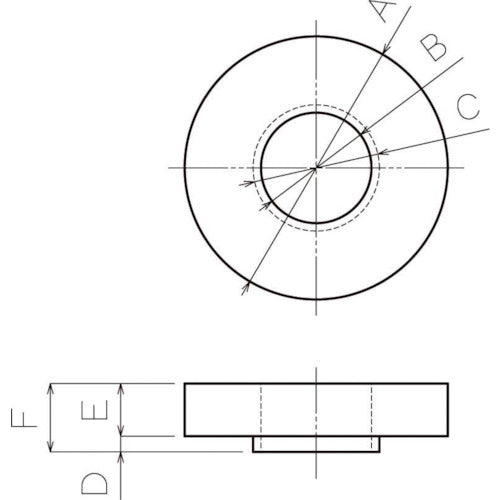

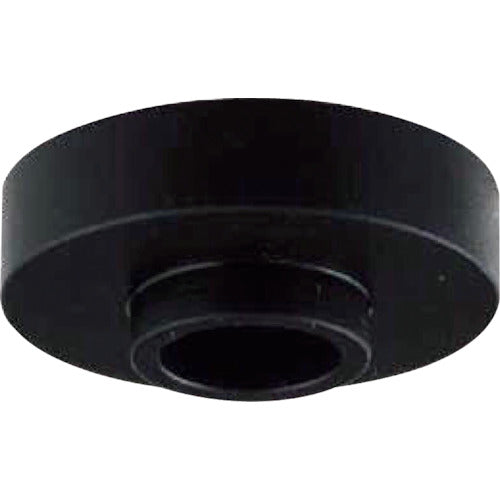

Catalog number: 2420-DFW Features: ●Ideal when the groove width of the bolt and clamp do not match. ●With a guide, it can be clamped at the center of the groove width. Applications: ●For clamping machining tools. ●For milling and machining. Specifications: ●Compatible bolt: M20 ●Outer diameter (mm): 50 ●Inner diameter (mm): 21 ●Height (mm): 13 ●Guide diameter: Φ24 ●Thickness: 10 ●Guide thickness: 3 ●Total length (mm): 10 ●Thread diameter (mm): 24 Caution: ●The required torque may not be obtained because the bolt diameter is made smaller.
