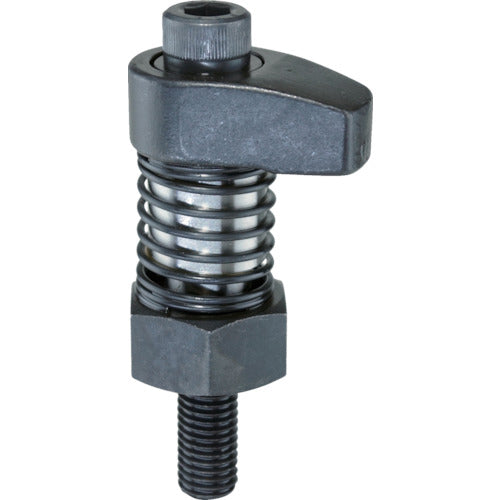

NEW STRONG Hook Clamp (D Type) HCD-2 1 pc

NEW STRONG Hook Clamp (D Type) HCD-2 1 pc

JAN：4560290969440 　
Clamps (for machine tools) Machine tools New Strong Clamp Tooling and fixtures
¥13,898
¥13,898
Sale Sold out
Shipping calculated at checkout.
Catalog number: HCD-2 Features: ● Built-in spring improves clamping efficiency. Applications: ● For clamping NC machines, etc. Specifications: ● Width (mm): 36 ● Height (mm): 45 ● Bolt diameter (mm): M12 ● Stroke (mm): 50 ● Receiver screw hole: M12 ● Bolt diameter: M12 ● Clamp tip width (mm): 20 ● Clamping jig Material/Finish: ● Body: Steel (S45C) ● Body treatment: Black dye finish ● Cap bolt: Steel (SCM440) ● Cap bolt treatment: Hardened (HRC38-42) Set contents/Accessories: ● Single item Caution: ● Please check the stroke dimensions.
